Bipedal Locomotor Group

WL-16
(Waseda-Leg No.16)

WL-16

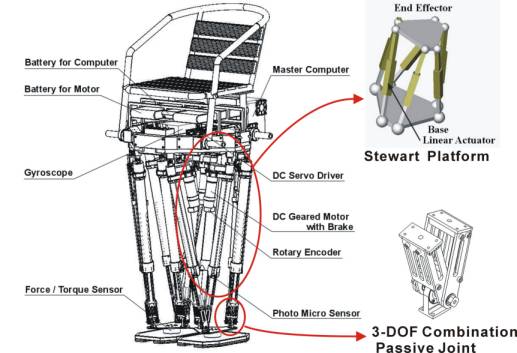

Mechanism

As stated previously, the biped robot, WL-16, has been developed as a leg module that is sufficient for practical use as a multi-purpose locomotor of the robot system. Therefore, many functions were required to accomplish a high independence. Specifically, it had to be driven by a battery, able to carry a heavy payload and so on. In order to satisfy these functional requirements, we have adopted 6-DOF parallel mechanisms. Taking advantage of the mechanical rigidity of the parallel mechanism, we have succeeded in reducing the weight by means of using polyacetal resin in many of the components instead of metals, and also by cutting down on the weight of the gears, motors, motor drivers and other elements. By using electromagnetic brakes, it was possible to keep the robot in the same posture with less energy consumption. WL-16' s gross weight is 52 kg including a 7 kg battery, and its height about 1.2 m.

Using the biped robot, many applications are expected. An application of the locomotion mechanism of a humanoid robot in which wheels and crawlers are used is conceivable, and the applications of a locomotion mechanism of a walk support machine, a wheelchair and for the medical-treatment field are also conceivable. Applications for new intelligent mobility or a new entertainment vehicle that people can drive are also interesting.

ڍא}

go to TOP

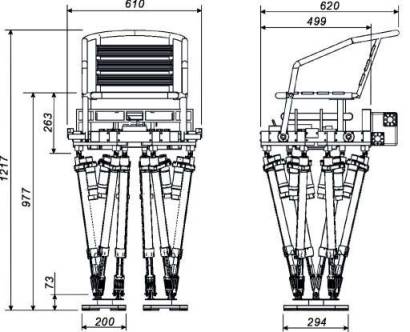

Specifications


Specifications
Specifications
WL-16 WL-16 WL-16
(a)Back-and-Forth 1.02m (b)Side-to-Side 1.36m (c)Up-and-Down 0.34m

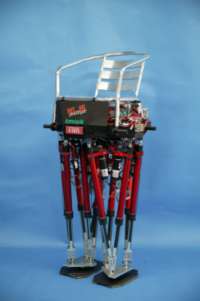

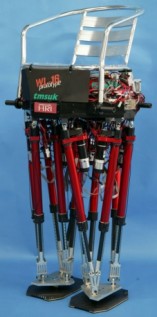

WL-16

front right
(a)front (b)right
rear left
(c)rear (d)left




go to TOP

Experiment



(a)


  • Walking cycle 1.92[s/step]CStep length 300[mm/step]

(b)


  • Walking cycle 0.96[s/step]CStep length 100[mm/step]

(c)


  • Walking cycle 0.96[s/step]CStep length 100[mm/step]

(d)


  • Walking cycle 0.96[s/step]CStep length 100[mm/step]

(e)


  • Walking cycle 0.96[s/step]CStep length 100[mm/step]

(f)


  • Walking cycle 0.96[s/step]CStep length 100[mm/step]



go to TOP

Future Works

future
Now that we have developed the basic walking stabilization control for an uneven surface using WL-16, our next goal is to realize walking in the human-living environment. We will also continue to study more intelligent walking control methods for more complex unknown environments.
