WABIAN-2
Biped Humanoid Robot Group

WABIAN-2

(WAseda BIpedal humANiod-No.2)






1. Overview

WABIAN-2 has been designed accordingly in order to develop a humanoid robot with the height of 1500[mm], and the weight of 60[kg].
Below is the drawing and specification of WABIAN-2



Specification

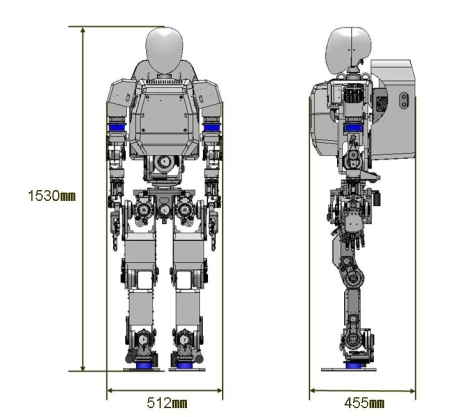

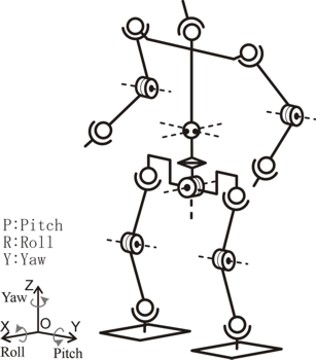

Fig. 3 Drawing Fig. 4 WABIAN-2 DOF

Table 1 Specification
Height 1530[mm]
Weight
64.5[kg] with Batteries
60[kg] witout Batteries
DOF
Leg : 7×2
Waist : 2
Trunk : 2
Arm : 7×2
Hand : 3×2
Neck : 3
Total : 41
Sensors
6-Axis Force/Torque Sensor
Photo Sensor
Magnetic Encorder
Actuators DC Servo Motor
Reduction Mechanism
Harmonic Drive Gear
Timing-belt/Pulley
Batteries Ni-H Battery

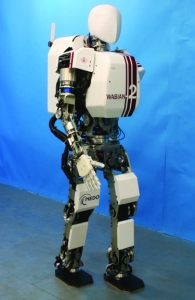

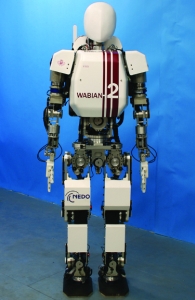

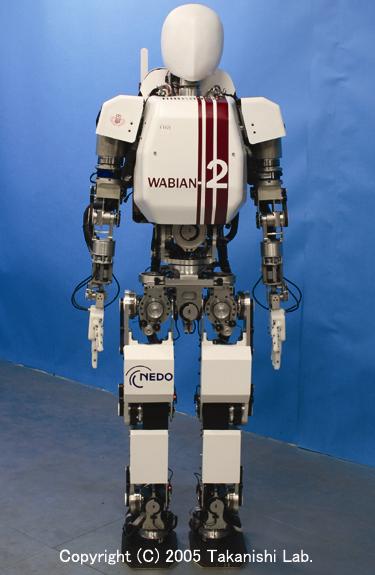

Isome Front
Fig. 5 Photos
Click image to open in newr window


<Control System>

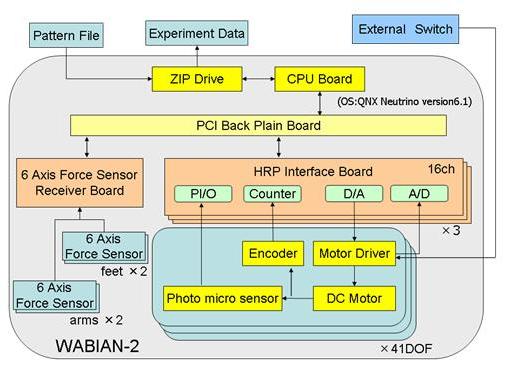

WABIAN-2 is controlled by a computer mounted on its trunk. The control computer consists of a PCI CPU board , which is connected to I/O boards through PCI bus. For I/O boards, we used HRP Interface Board which has 16ch D/As, 16ch Counters and 16ch PIOs, and six axis force/torque sensor receiver board. Operating system installed on control computer is QNX, which is a real time system.Each Actuator system is equipped with an incremental encoder attached to the motor shaft, and a photo sensor attached to the joint shaft in order to detect the initial posture. (Also each ankle is equipped with a six axis force/torque sensor which is used to measure floor reaction force and ZMP.)


Control System
Fig. 6 Control System

-Page_TOP-

2. Mechanism

2.1 WABIAN-2/LL (Lower Limb)

Until February 2004, we developed lower limb mechanism of the bipedal humanoid robot WABIAN-2.
Using this robot, we achieved human-like walking which have knee stretched posture.(length of stride : 0.35[m/step], gait cycle : 0.96[s/step])

Conventional Walking
(MPG 14[sec] 2.5MB)

Walking with constant waist height
Walking cycle : 0.96[s/step]
Step length : 200[mm/step]
Stretch Walking
(MPG 15[sec] 2.54MB)

Walking with knees stretched position
Walking cylcle : 0.96[s/step]
Step length : 350[mm/step]

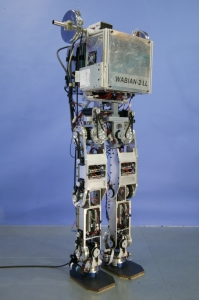

Fig. 7 WABIAN-2/LL Fig. 8 DOF Configuration of WABIAN-2/LL WABIAN-2/LL Walking Experiments


2.2 Mechanism of the Lower Body


Conventional biped humanoid robot had 6-DOF in each leg. This is different with humans which have more DOF in each leg, and the ablility to realize various walking motions. Therefore, we concentrate on human's waist motions and the yaw motion of ankle joint, in order to realize more human-like walking motions.


DOF Configuration of the Lower Body
Fig. 9 DOF Configuration of Conventional humanoid robot(WABIAN) Fig.10 DOF Configuration of WABIAN-2

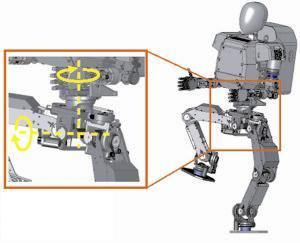

2-DOF (Roll, Yaw) in waist part enables more human-like walking motions. This new mechanism has an advantage which allows this robot to walk with knee streched position due to the independent orientation of trunk movement. Waist DOF
Fig. 11 Waist DOF
Click image to open in new window

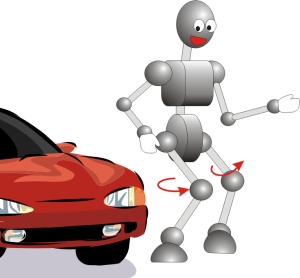

Advantage of 7-DOF In case of conventional leg mechanism (6-DOF), predetermination of foot's position and orientation will decide each joint angle. However, humans have the ability to more their knees even if the position and orientation of foot are predetermined due to the redundant DOF. Therefore, we think that by having 7-DOF instead of 6-DOF robot will have the same ability as human to walk smoothly even needed changing step.
Fig. 12 Advantage of 7-DOF leg mechanism


3.3 Mechanism of the Upper Body

The upper body was designed for the purpose of simulating various human motions,
for example, carrying something with human, dancing with human, pushing a walker,and attaching a cane (especially, using walk assist machine.).

Upper body includes a 2-DOF trunk, two 7-DOF arms (each arm have more 3-DOF hand), and a 3-DOF neck.

And, the movable range of wabian-2 covers human's one.

Fig. 13 Pushing a walker Fig. 14 Attaching a cane

-Page_TOP-

3. Experiments

Click images, to watich the experiment movies

Basic Experiment1
Basic Experiment 1
(MPG 14[sec] 2.42MB)

Having 2-DOF of waist allows to move the knees with the foots on the floor.
Basic Experiment3 Basic Experiment 2
(MPG 20[sec] 3.46MB)
Having each 7-DOF of four limbs allows to move the elbows and knees with positions of the hands and foots fixed.
Stretch Walking Stretch Walking
(MPG 15[sec] 2.54MB)

Walking with knees stretched position
Walking cylcle : 0.96[s/step]
Step length : 350[mm/step]
Basic Experiment2
Basic Experiment 2
(MPG 15[sec] 2.56MB)

Having 2-DOF of the trunk allows the turning of the upper body.
Conventional Walking Conventional Walking
(MPG 14[sec] 2.5MB)

Walking with constant waist height
Walking cycle : 0.96[s/step]
Step length : 200[mm/step]
Walk assist experiment
Walk assist experiment
(MPG 8[sec] 1.45MB)

Using WABIAN-2 with Walker
Walking cycle : 0.96[s/step]
Step length : 200[mm/step]

* If you cannot watch the movies, please save mpg files in your computer first.

-Page_TOP-

4. Submission to AICHI EXPO


We made a presentation at the event "PROTOTYPE ROBOT EXHIBITION" which had takn place in AICHI EXPO from June 9 to 19, 2005.

In the event, we demonstrated WABIAN-2's movements of the waist and trunk, and walking with knees stretched like human. We measured energy consumption at the knee joints in conventional walking (walking with knees flexed) and walking with knees stretched, and compared them by a graph.
We showed quantitative verification to the audience that we're less tired after walking with knees stretched than flexed.


Greeting Walking with knees stretched

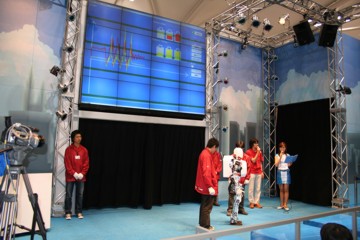

Conventional walking Comparison of knee's energy consumption
between the two kinds of walking
Movement of the elbows and knees by each 7-DOF Walking with walker

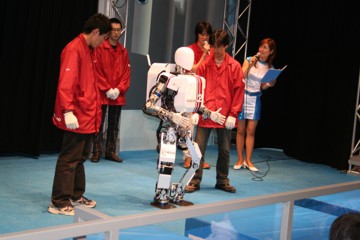

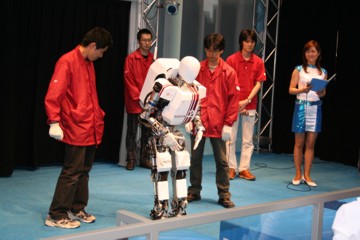

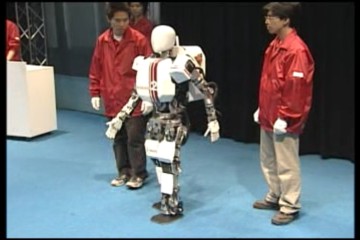

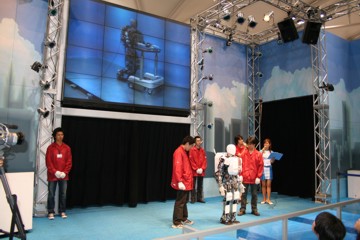

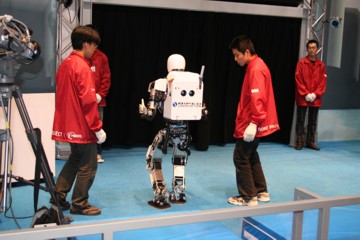

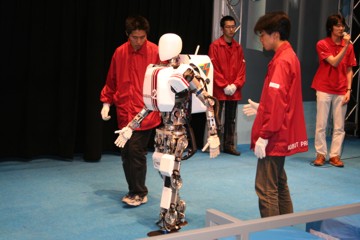

Fig. 19 Demonstration at AICHI EXPO


Demonstration at AICHI EXPO
(WMV 197[sec] 23.3MB)

*Click the image, to watich the experiment movies
