purpose

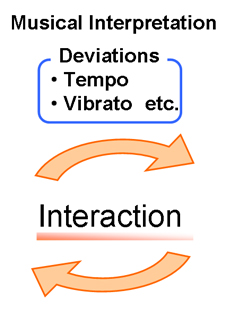

We have proposed; as a long-term goal, the development of musical performance robots designed to be able of interacting with musical partners (both human players as well as musical performance robots) at the emotional level of perception. For this purpose, we are focusing our research in enhancing the perceptual capabilities of the anthropomorphic flutist robot as well as developing a new musical performance robot.
In this research, we are focusing on developing a new musical performance robot which in the future will be able of interacting with the anthropomorphic flutist robot. For this purpose, we have decided to develop a musical performance robot which is able of performing other kind of wind instrument. Wind instruments fall into one of the following categories: brass instruments and woodwind instruments. One important difference between woodwind and brass instruments is that woodwind instruments are no-directional. This means that the sound produced propagates in all directions with approximately equal volume. Brass instruments, on the other hand, are highly directional, with most of the sound produced traveling straight outward from the bell. Thus, the wood instruments represent a higher challenge to reproduce the human motor control from an engineering point of view. Basically, there are three types of wood instruments: single reed (i.e. clarinet, saxophone), double reed (i.e. oboe, bagpipes, etc.) and the flute. In particular, we have focused our research on developing an anthropomorphic saxophonist robot since 2008.

WAS-1
(2008)
(About WAS-1)

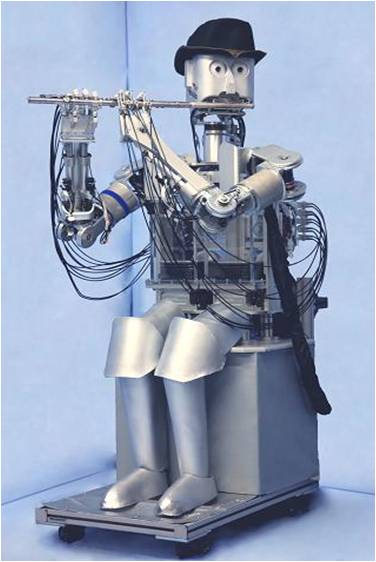

WF-4RVI
(2011)
(About WF-4RVI)

-TOP-

overview

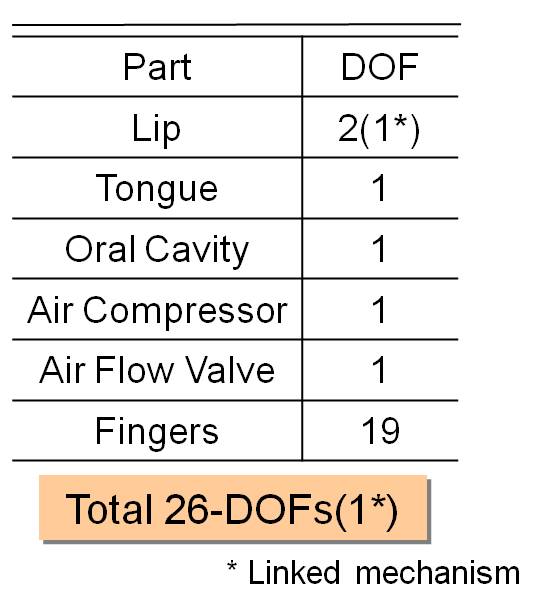

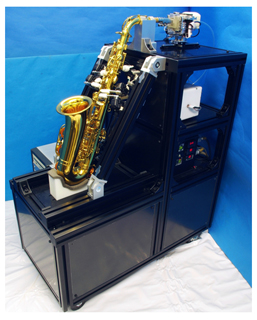

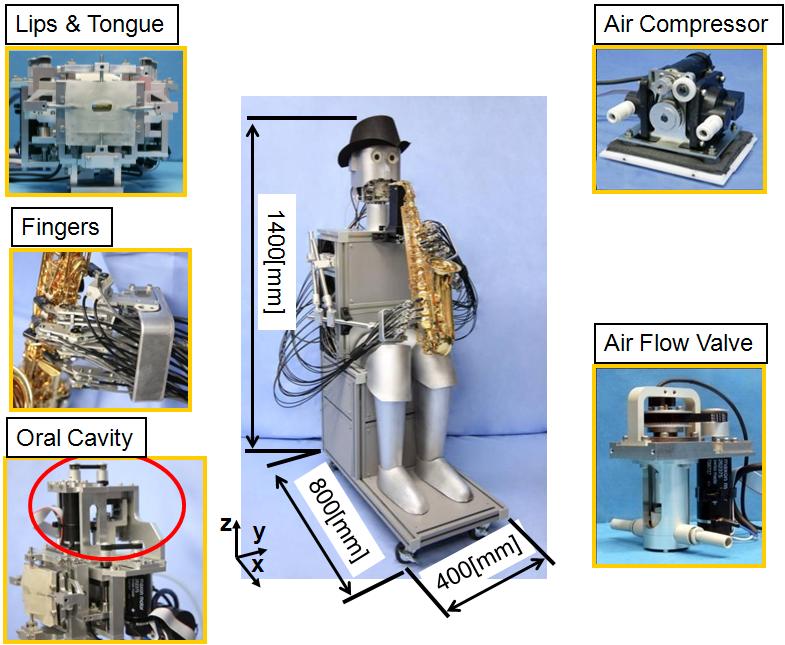

In 2011, we have developed the Waseda Saxophonist Robot No. 2 Refined II(WAS-2RII) which it has been designed to improve performance stability by redesigning the shape of a oral cavity and embedding sensor of the finger. In particular, the WAS-2RII is composed by 26-DOFs that reproduce the physiology and anatomy of the organs involved during the saxophone playing as follows: 2-DOFs (from which 1-DOF is passively controlled) to control the shape of the artificial lips, 19-DOFs for the human-like hand, 1-DOF for the tonguing mechanism, 1-DOF for the oral cavity mechanism and 2-DOFs for the lung system (1-DOF for the air pump and 1-DOF for the valve mechanism).

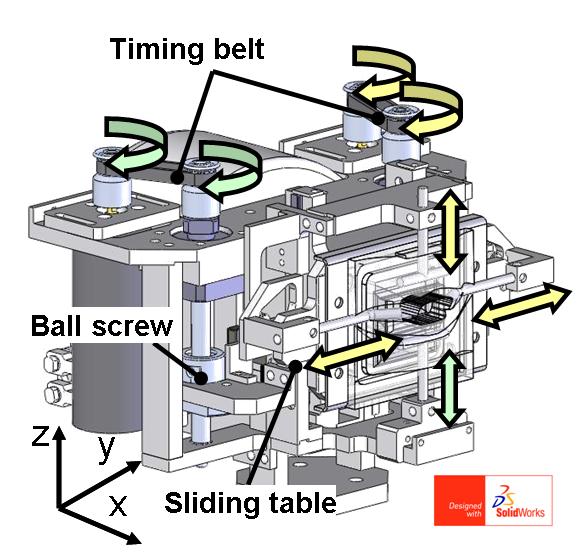

The lip mechanism consists of 2-DOFs designed to control the up/down motion of both lower (pitch changes are controlled) and upper lips (sound pressure changes are controlled). In addition, a passive 1-DOF has been implemented to modify the shape of the side-way lips.

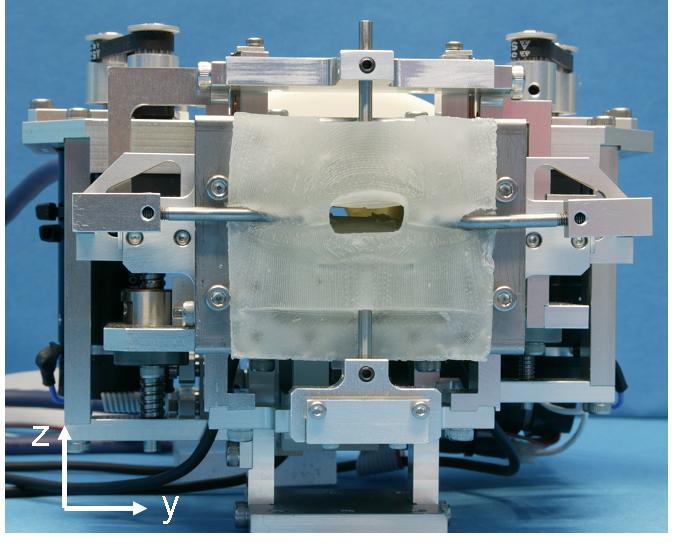

Mouth(left)・・・・・
Mouth mechanism(right)・・・・・

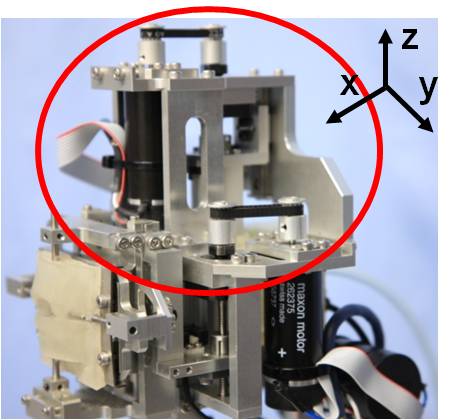

  The oral cavity mechanism is consist of 1-DOF designed to control the up/down motion of sectional area of oral cavity. It is able to control sound pressure by the motion. This mechanism is designed by mesureing proffesional music performer.

・・・・・Oral Cavity(left)

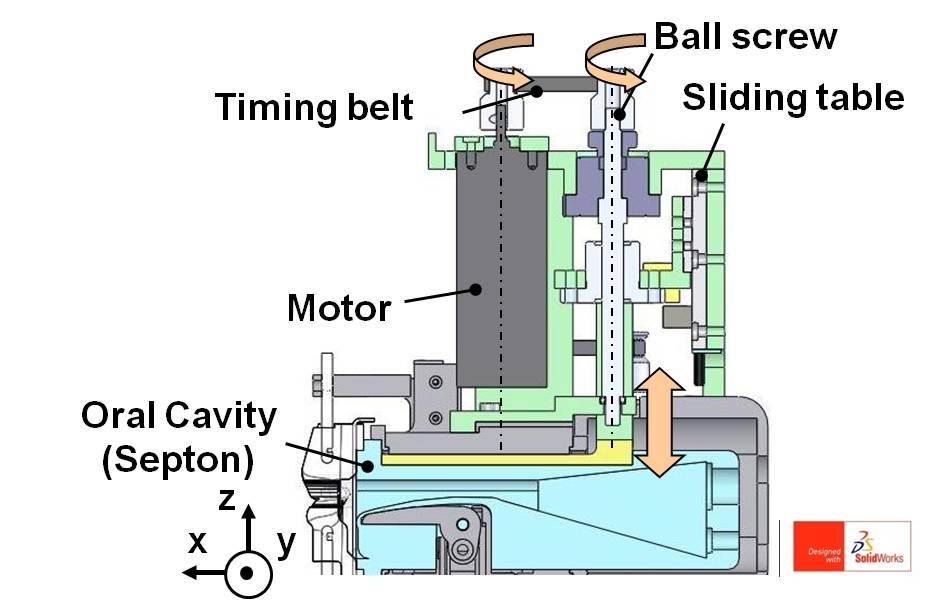

・・・・・Oral Cavity mechanism(right)
-UP-


The tongue and oral cavity are made of rubbers. As shown a left figure, the tongue is in contact with the reed of saxophone and the applied torque is transferred from motor to tongue by link mechanism. As a result, robot can control the dynamic properties of the sound such as "attack" and "release". In addition, in order to increase the range of sound, the shape of the oral cavity has been re-designed based on the measurements obtained from ultrasound images taken from professional saxophonist players.

Oral cavity(left)・・・・・

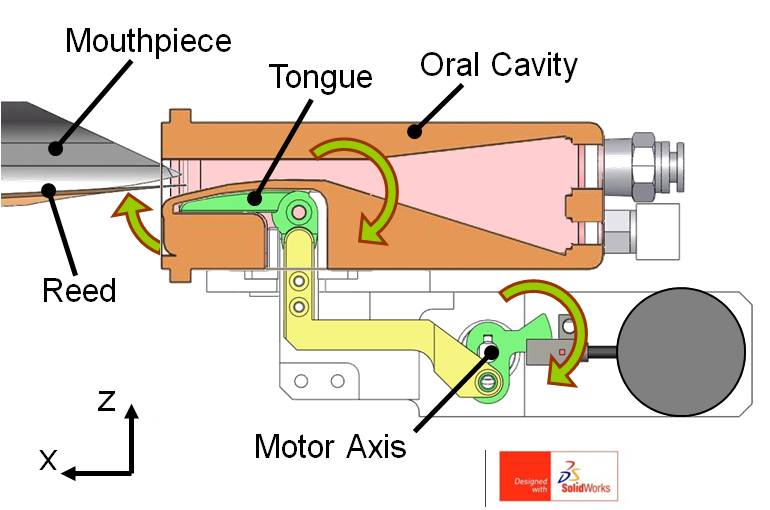

Tongue mechanism(right)・・・・・
-UP-


Regarding the air source (lung mechanism), a DC servo motor has been used to control the motion of the diaphragm of the air pump; which is connected to an eccentric crank mechanism. This mechanism has been designed to provide a minimum air flow of 20 L/min and a minimum pressure of 30kPa. Moreover, a DC servo motor has been designed to control the motion of an air valve so that the delivered air by the air pump is effectively rectified.
・・・・・Air compressor(left)
・・・・・Air compressor mechanism(right)
-UP-

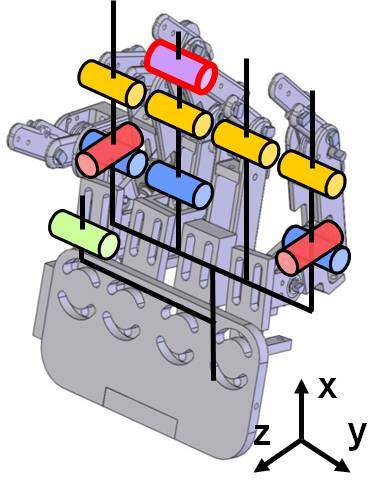

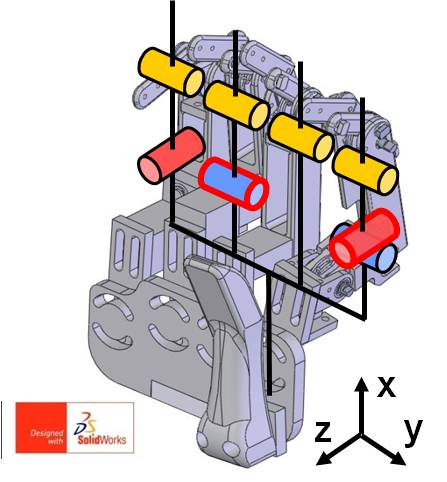

The alto saxophone is possible to play from A#2 to F#5. For this purpose, a human-like hand has been designed, which it is composed by 16-DOFs. In order to reduce the weight on the hand part, the actuation mechanism is composed by a wire and pulley commented to the RC motor axis. In order to control the motion of each single finger, the RS485 communication protocol has been used.

Fingers(left)・・・・・
Fingers control system(right)・・・・・

  In addition, in order to compensate the delay on the response of each finger mechanism, rotary encoders have been embedded to compensate the dead time. As a result, the response of all fingers can be synchronized during the performance.

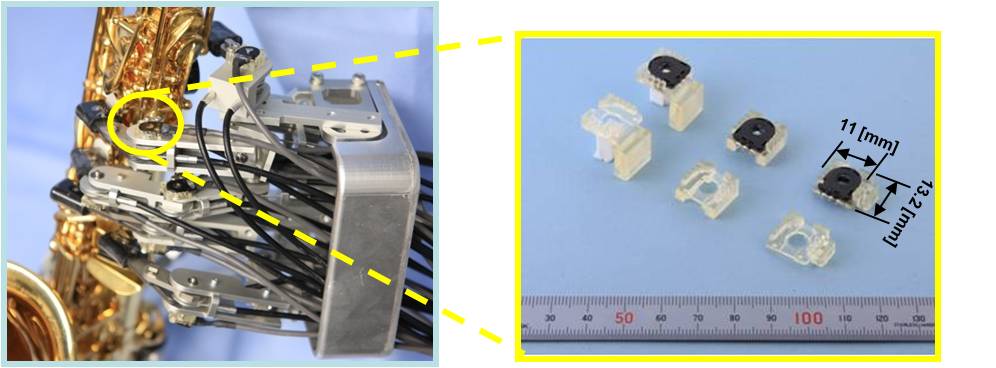

・・・・・Fingers embedded sensors (left)
・・・・・Sensor mount(right)
-UP-

-TOP-

cont_system

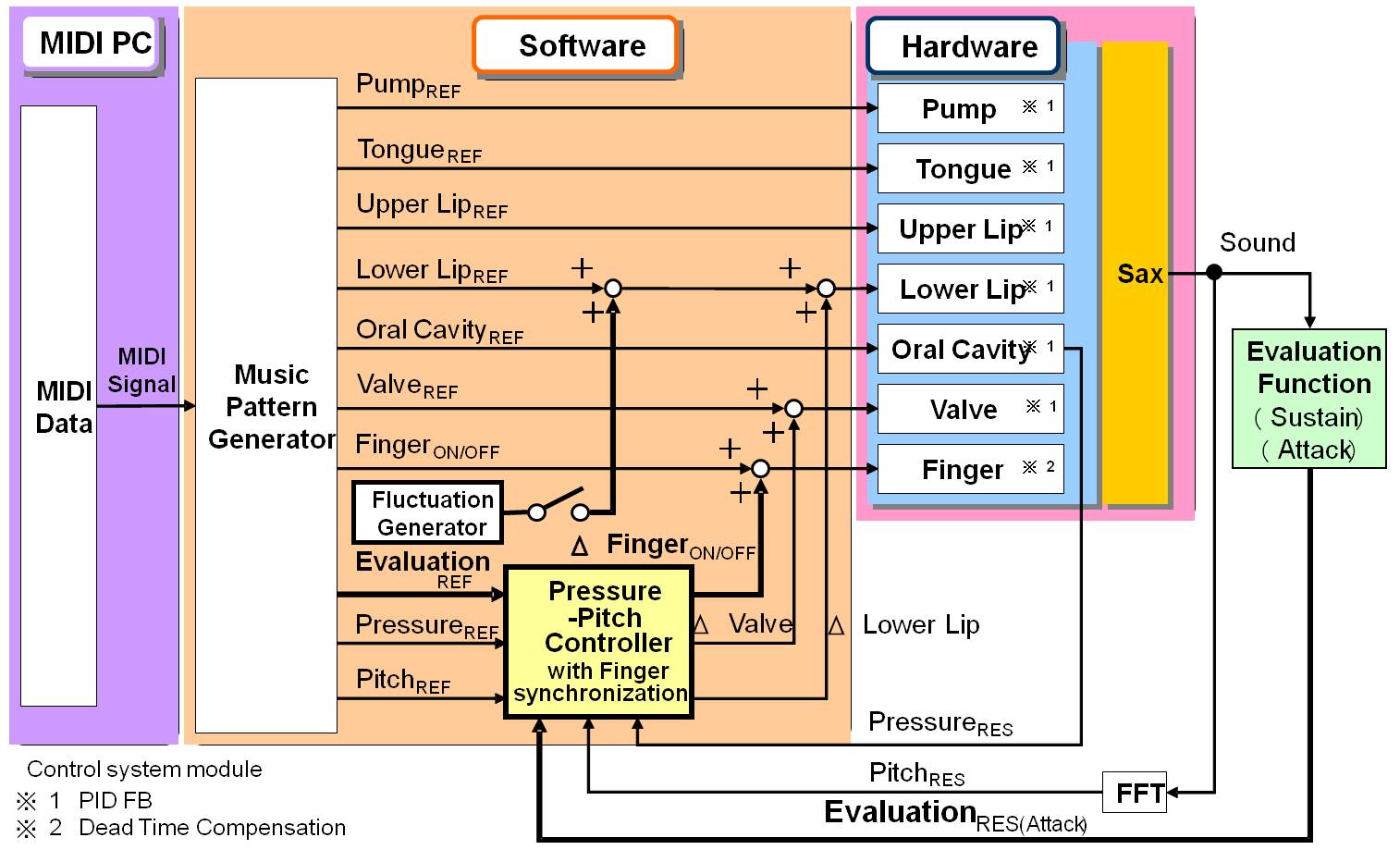

 This block diagram is the WAS-2RII's control system.In the fingers, rotary encoders measure every finger's delay time.  Additionally, in the pressure-pitch controller with Finger synchronization, they are controlled by FF control system. FF control system is constructed by Neural Network's study from FB value. In the system, pressure, note, lip position and pitch are inputs. And valve position and lower lip position are outputs. Also Fluctuation Generator generates 1/f fluctuation that can performe more human like sound.
system
-TOP-

system

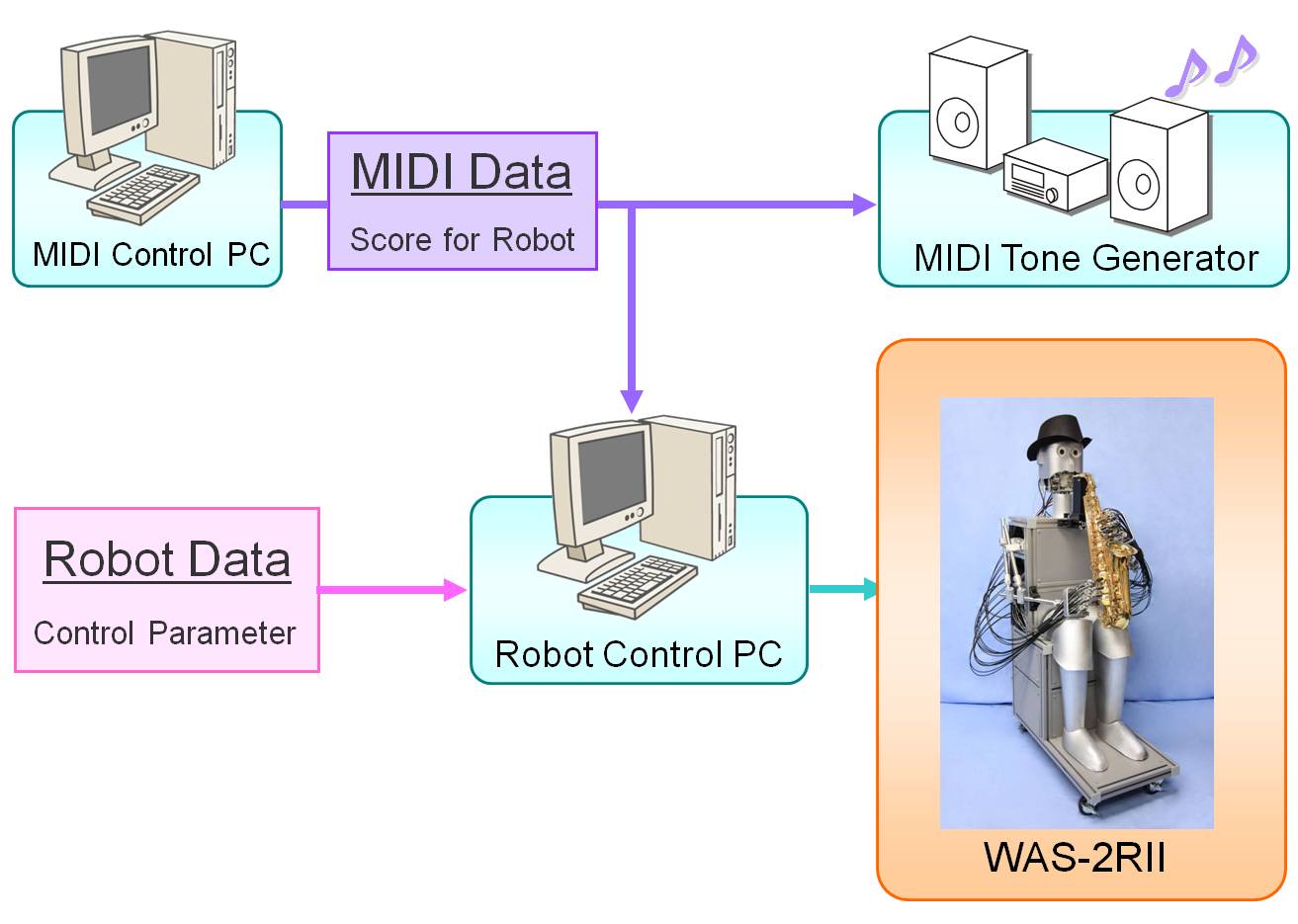

The MIDI accompaniment system of WAS-2RII consists of two computers to control the robot's musical performance: one for controlling the robot, and the other to generate the accompaniment MIDI data. These computers are connected by the MIDI system, and the synchronization of the performance is achieved by using the MIDI signal.
system
-TOP-

movie

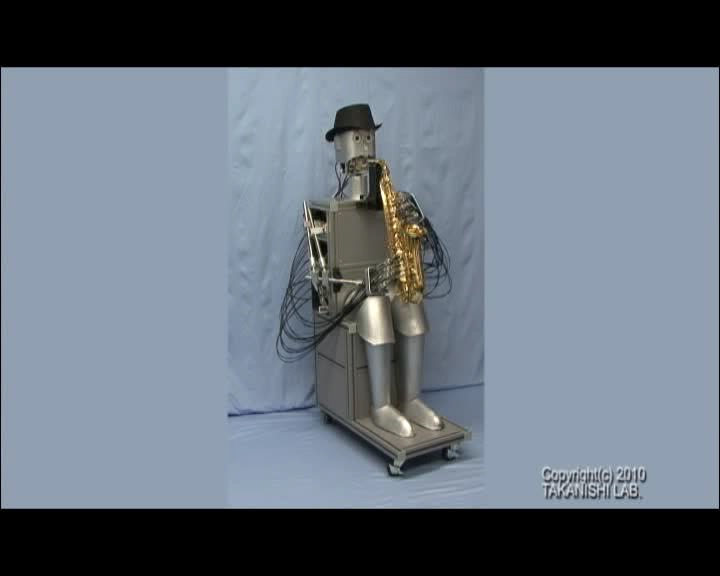

Saxophone peformance of WAS-2RII(mpeg/0:52/8.71MB)


「Confirmation」
composed by Charlie Parker
-TOP-
acknowledgement
A part of this research was conducted at the Humanoid Robotics Institute (HRI), Waseda University.
WAS-2R has been designed by 3D CAD software "SolidWorks". Special thanks to SolidWorks Japan K.K. for the software contribution.
Humanoid Robotics Institute, Waseda University
Toyota Motor Corporation
SolidWorks Japan K.K.
